niPP - non-intelligent Power Pod

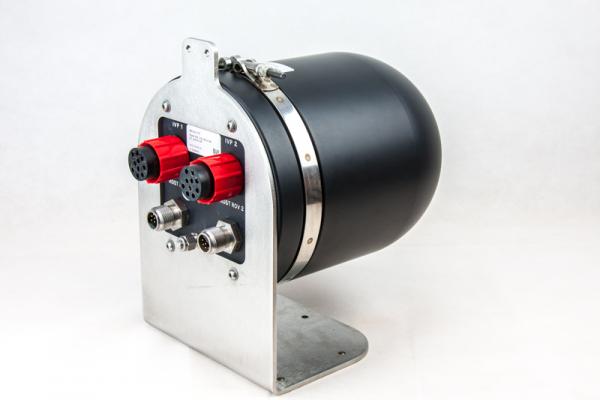

niPP inside IMG 4392

The Fathom Systems Power Pod is available as part of the Control System Products range when only a 115V AC power supply is available from the host vehicle to the iVP.  This non-intelligent, 3000msw rated single atmosphere domed pressure housing hosts 2 x 115V AC inputs with Burton 1508 interface and 2 x 24V DC Outputs with SubConn BH10FSS interface to power 2 individual Fathom iVP’s.  Two chassis mounted internal power supply units provide sufficient capacity to host 2 x iVP’s of up to 12 functions.

  • 3000msw rated (optional up to 6000msw)
  • 213mm Diameter x 280mm Length
  • Hard Anodised Aluminium 6082T6 Single Atmosphere Pressure Housing
  • Stainless Steel 316L Mounting Bracket
  • 115V/230V AC @ 50/60 Hz, Power Input & Telemetry – Burton 1508
  • 24V DC @ 7.5A, Power Output & Telemetry – SubConn BH10FSS
  • Cathodic Protection
  • Single Face Seal & V-Band Clamp sealing arrangement
  • Weight in Air – 16kg
  • Weight in Water – 9kg
