Line Input/Output

Line Input Output03 reduced cropped

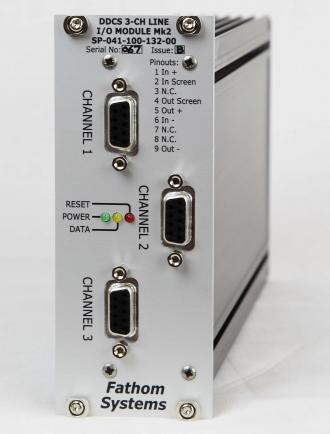

The DDCS can be configured with a number of Line Level Input / Output channels using the Isolated 3-channel line level I/O module.

This provides scaleable -12 to +6dB line level input and output non-amplified channels used typically for connections to recording equipment such as DVR’s, monitors, bell emergency ‘thru water communications’ systems, entertainment system equipment, powered outstations and other third-party equipment. This versatile module may feature in a chassis designated for either SAT Control, Dive Control or an Air/Nitrox Dive System. Adjustment of these channels is similar to the Isolated Channel adjustments, and is via the adjustments page. The channel to be adjusted is selected from the Touchscreen Matrix display in the normal way, and the title tile press shows the adjustments page.

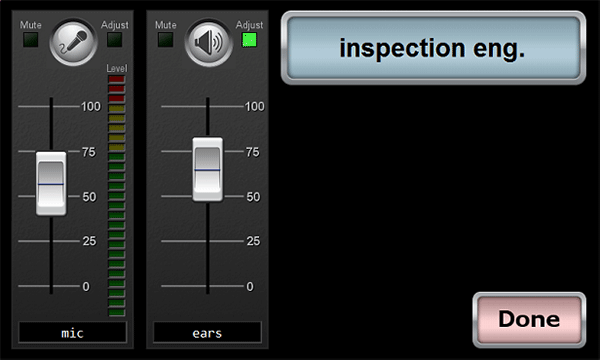

Line IO Module GUI
