iGA Sample Specifications

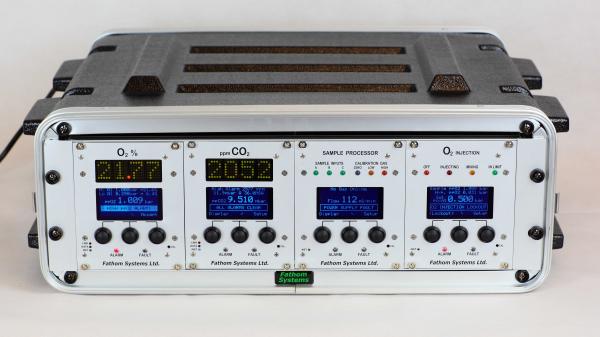

iGA Sample Specifications IMG 7126conv reduced

Fathom Systems intelligent Gas Analysers are modular in format with a number of configurations available to meet with the specific dive system requirements.

The overall system make-up is dependent on the certifying and compliance standards with which it must meet and this ultimately dictates the configuration of the Gas Analysis system and the individual system chassis’ which form the overall networked system. In all instances, or indeed most, there is a requirement for the O2 Master Unit and CO2 Slave,  which are then accompanied by a specific Sample Gas Processor, the type of which is dictated by the service being provided. Fathom Systems now offer sample gas pressure gauge panels as part of the system chassis in conjunction with the gas processor. These are supplied with the front panel indicating the service provided in clear anodic print. In lieu of the sample gas pressure gauge panel, a 4th analyser module may be installed. The product type is again dictated by where it is to be used and may range from either an O2 Injection Unit (for main living chamber and transfer), 6-Input Sample Manifold (for cross-check scanning) to a ppO2 Fuel Cell (for Bell sampling).

All Fathom Systems intelligent Gas Analyser products are supplied in 19” x 3U rackmount chassis format, either for conventional front install in a standard 19” rack or rear install as a flush fit to a SAT or Dive Control panel.

Below are just a few samples of typical configurations and their area of use.



SAT Control & Chamber Area

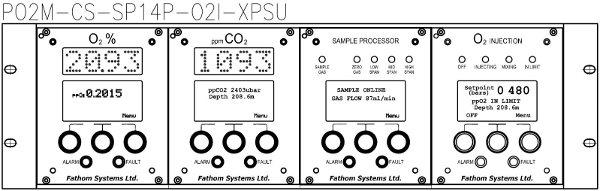

Main Chamber & Entry Lock – O2 Master, CO2 Slave, 5-Input Sample Gas Processor c/w Pump (Single Sample Gas, 4 Cal Gas), 24V DC PSU

iGA Sample Specifications Module Configuration 01 scaled

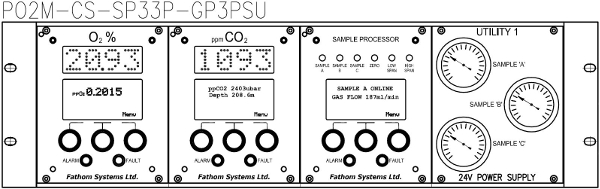

Utility & SPHL – O2 Master, CO2 Slave, 6-Input Sample Gas Processor (3 x Sample Gas, 3 Cal Gas), Triple Sample Pressure Gauge Panel, 24V DC PSU

iGA Sample Specifications Module Configuration 02 scaled



Dive Control & Bell Area

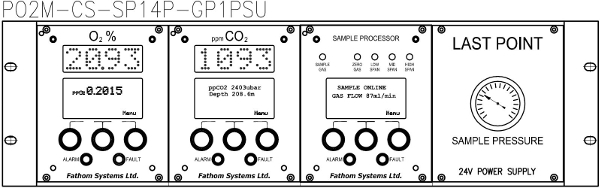

Diver Reclaim & Diver Breathing Gas Last Point – O2 Master, CO2 Slave, 5-Input Sample Gas Processor c/w Pump (Single Sample Gas, 4 Cal Gas), Single Sample Pressure Gauge Panel, 24V DC PSU

iGA Sample Specifications Module Configuration 04 scaled

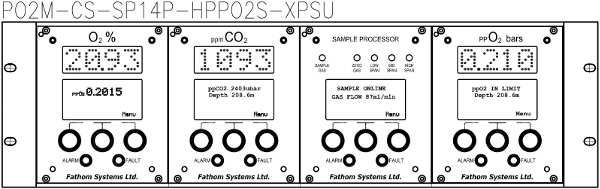

Bell Sample & ppO2 Fuel Cell – O2 Master, CO2 Slave, 5-Input Sample Gas Processor c/w Pump (Single Sample Gas, 4 Cal Gas), ppO2 Fuel Cell, 24V DC PSU

iGA Sample Specifications Module Configuration 05 scaled



Generic

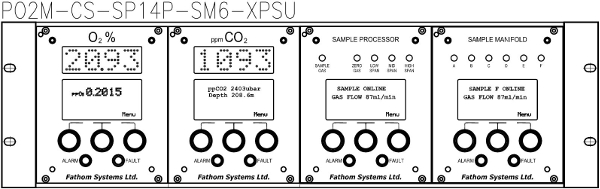

Scanning & Utility Analyser’ – O2 Master, CO2 Slave, 5-Input Sample Gas Processor c/w Pump (Single Sample Gas, 4 Cal Gas), 6-Input Sample Gas Manifold, 24V DC PSU

iGA Sample Specifications Module Configuration 03 scaled



Please contact Fathom Systems for further information: enquiries@fathomsystems.co.uk.
