iVP Modularity


The Fathom Systems iVP is a 3000msw (optional to 6000msw) depth rated subsea unit featuring mechanical modules manufactured from Aluminium grade 6082T6, hard anodised to BS5599, dyed-black & dichromate sealed.

The iVP uses industry standard Wandfluh fully proportional electro-hydraulic spool valves, Hydraforce proportional pressure control valves and SUN Hydraulics pressure relief/safety valves.  The system is supplied with dedicated topside branded PC and control software.  Examples of bespoke applications successfully undertaken can be viewed in the main iVP section.

Due to its modular design, we are able to offer the client almost endless options in terms of configuration depending on their requirements.  This allows a system to be specified and built to meet the exact needs of the client’s hydraulic and operational requirements and in turn saves money by not having to commit to a larger system where a number of functions may never be used.

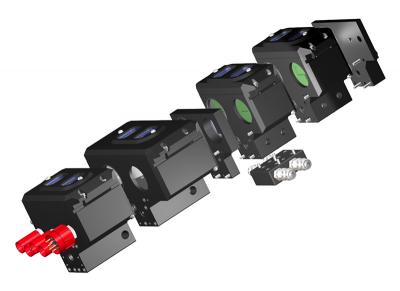

This feature depicts the various mechanical modules available within the iVP product range:


Electronics Module
El Mod Indicator
NG3 Module
NG3 Indicator
NG3 Module
NG6 Module
NG6 Module Indicator
NG6 Module
Torque Control Module
Torque Control Module Indicator
Torque Control
Pressure Reducing Module
Pressure Reducing Module Indicator
Pressure Reducing






Pressure Relief Valve Module
Pressure Relief
Valve Module
Mid Section Blanking Plate
Mid Section Blank Indicator
Blanking Plate
End Blanking Plate
End Blanking Plate Indicator
End Blanking
End Blanking Plate PT
End Blanking Plate PT Indicator cropped
End Blanking
Plate (P&T)
Pressure Transducers







Click here to view just some of the many configurations available to the system designer.

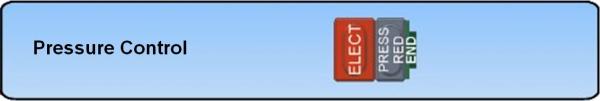

iVP 01 Pressure Control

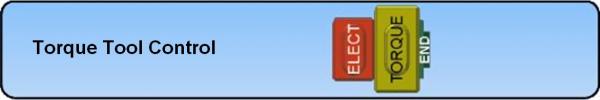

iVP 02 Torque Tool Control

iVP 03 Torque Tool Latches Hi Lo Control

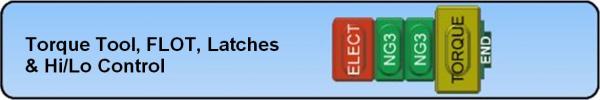

iVP 04 Torque Tool FLOT Latches Hi Lo Control

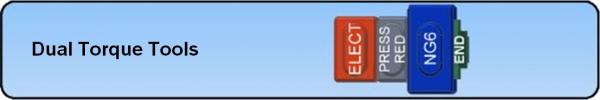

iVP 05 Dual Torque Tools

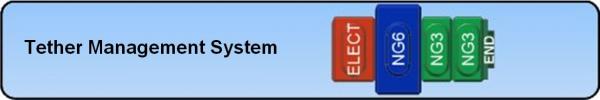

iVP 06 Tether Management System

iVP 07 Multi Pressure GFVP

iVP 08 Mulir pressure Dual Fluid GFVP

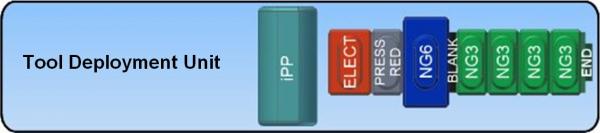

iVP 09 Tool Deployment Unit

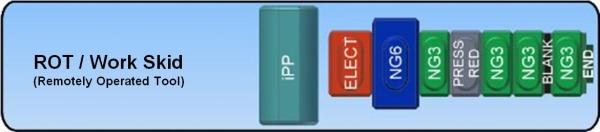

iVP 10 ROT Work Skid

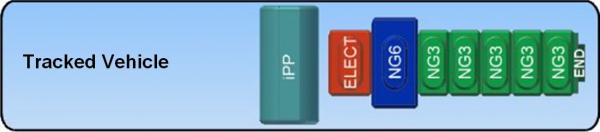

iVP 11 Tracked Vehicle

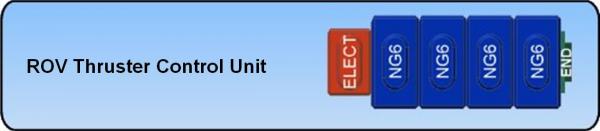

iVP 12 ROV Thruster Control Unit
